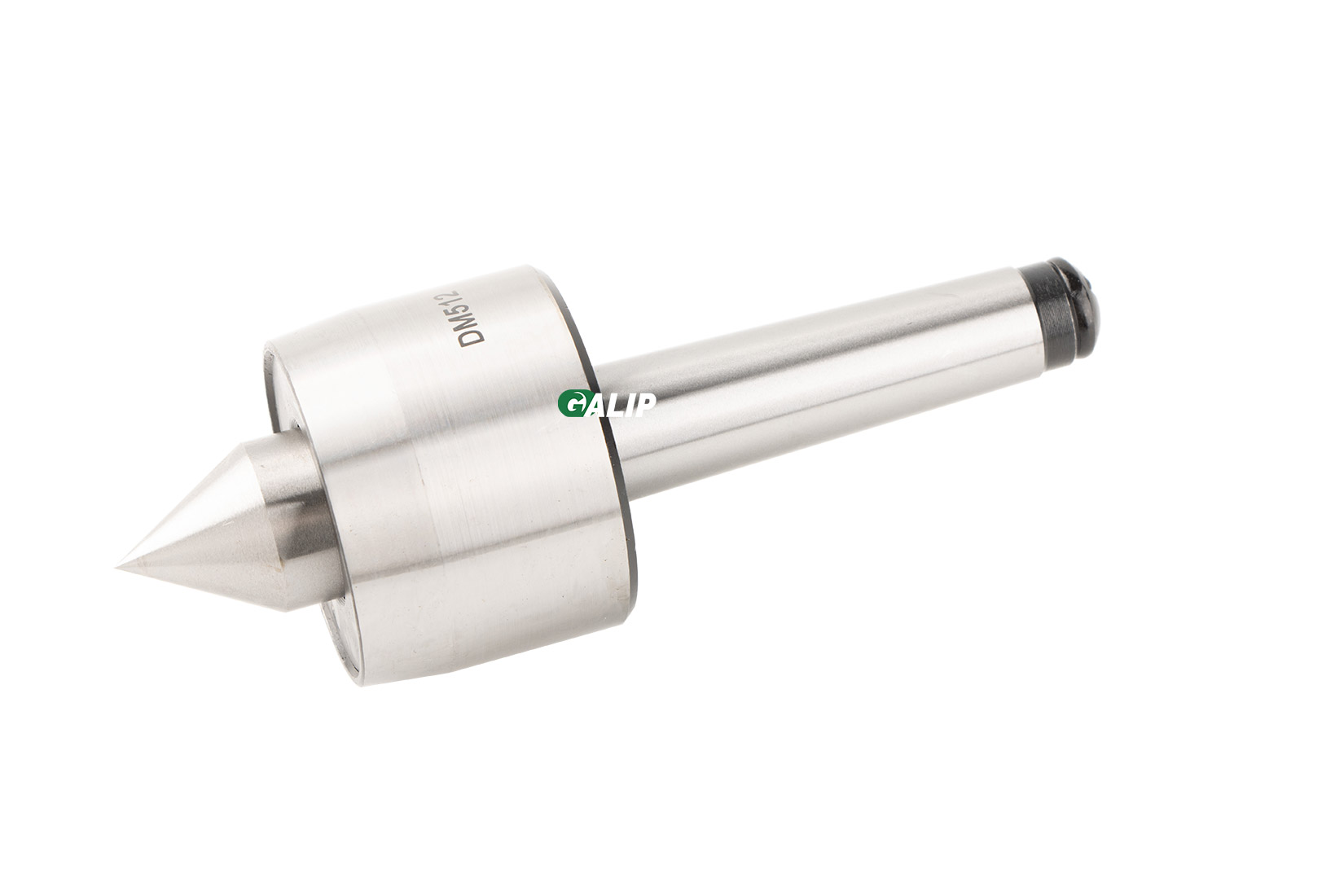

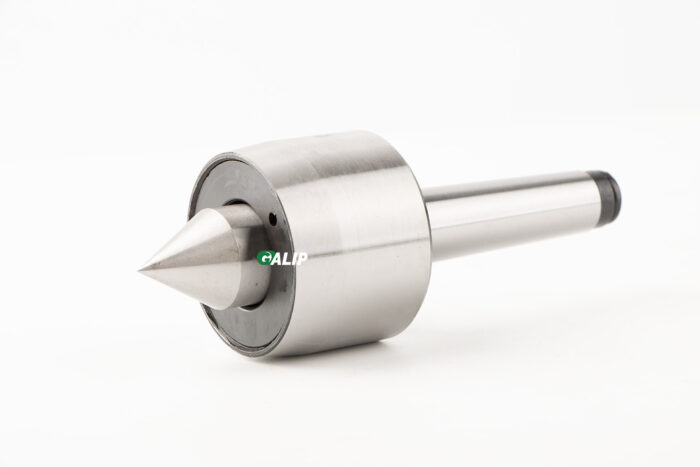

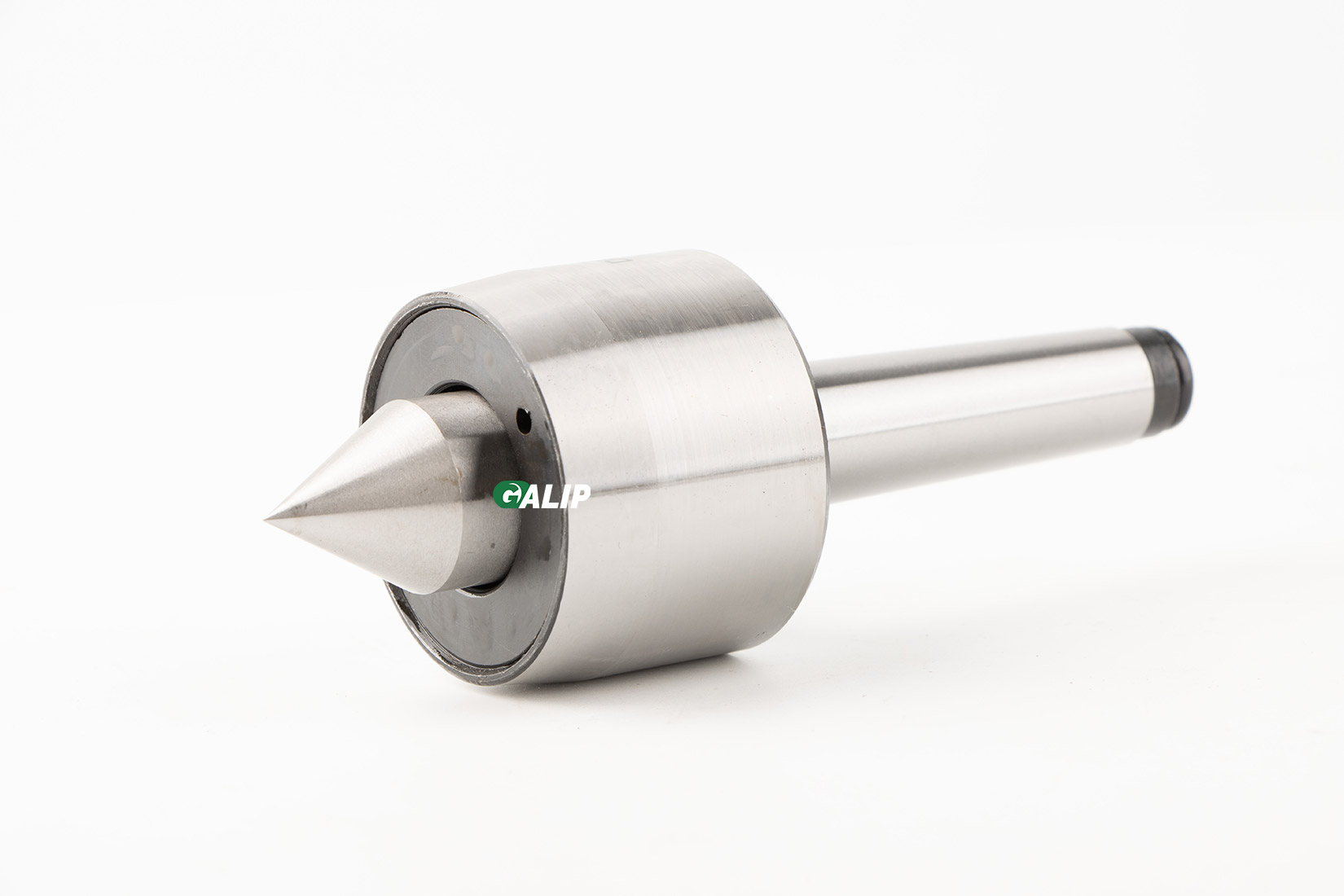

DM512 Heavy Live Center
Price range: $60.00 through $70.00
Description
Galip DM512 Precision Live Center is designed for medium speed and heavy load finish machining on CNC lathes. It combines angular contact bearings, thrust ball bearings, and needle roller bearings to ensure smooth and reliable operation.
Key Features:
- The extended spindle reduces vibration, improving cutting performance and ensuring smoother, more precise machining.
Made from high-quality alloy tool steel, heat-treated to a hardness of HRC 60±2, ensuring exceptional rigidity and wear resistance.

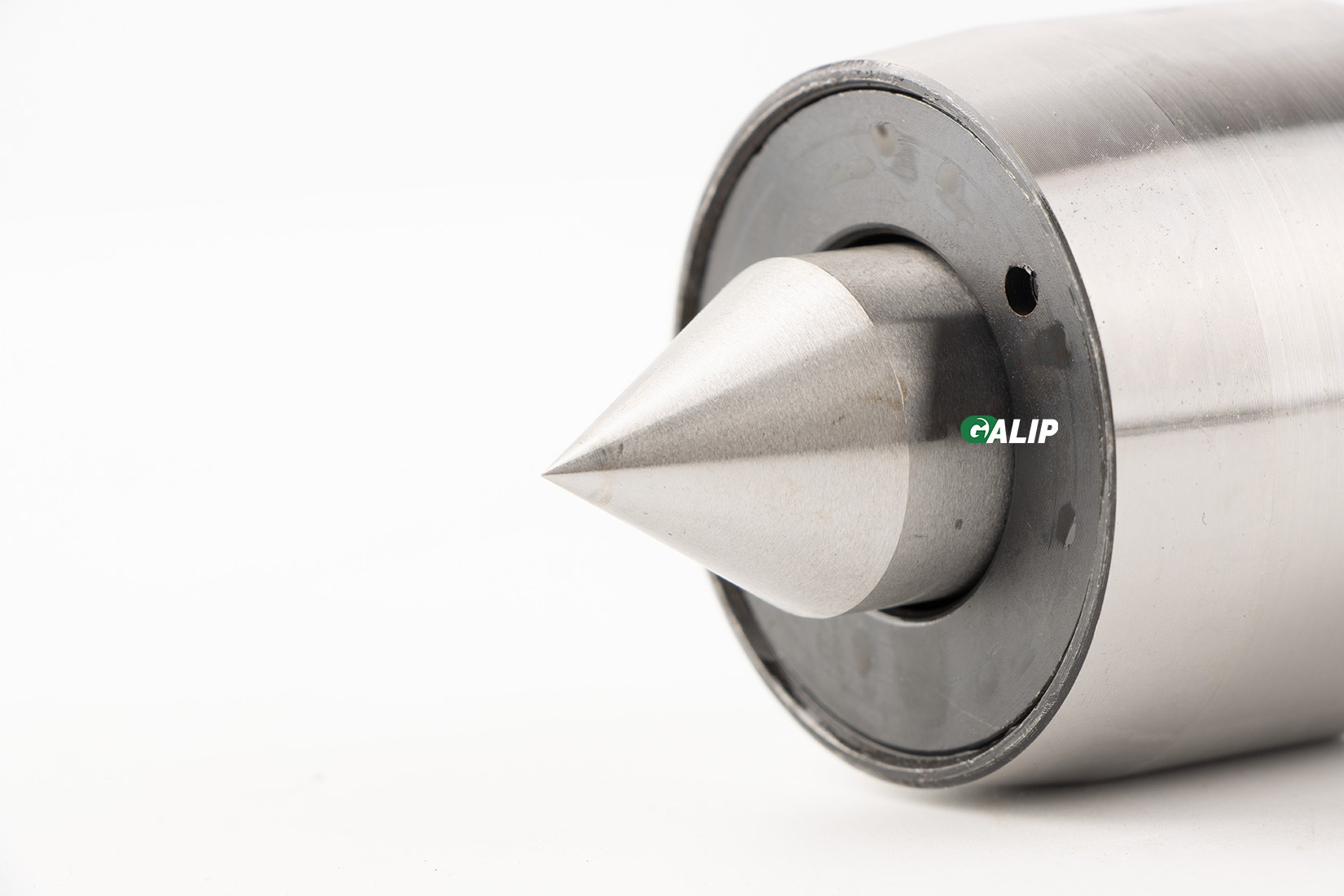

Dustproof seal at the front end to protect bearings from cutting fluid and dust, extending the center's service life.
- Oil can be added through the head's oil hole to lubricate internal bearings, extending the center's lifespan.
Perfect for precision work and heavy load operations, this live center guarantees long-lasting performance and accuracy, ideal for CNC lathe applications that require medium-speed, fine finish machining.

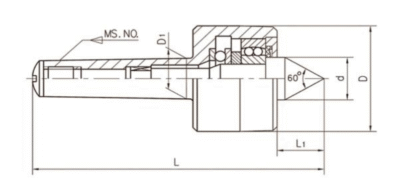

STANDARD SIZE
| Order No | MS. No | L (mm) | D (mm) | L1 (mm) | d (mm) | D1 (mm) | Max Radial Load | Max speed | Wt (kg) | Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| GA02LC31 | MS1 | 109.6 | 38 | 18.5 | 16 | 12.065 | 1400 | 3600 | 0.29 | 0.008 |
| GA02LC32 | MS2 | 128.5 | 48 | 24 | 22 | 17.78 | 3500 | 3400 | 0.39 | 0.01 |
| GA02LC33 | MS3 | 156 | 58 | 28.5 | 25 | 23.825 | 5500 | 3200 | 1.09 | 0.01 |
| GA02LC34 | MS4 | 192.5 | 68 | 31.5 | 28 | 31.267 | 8000 | 3000 | 1.69 | 0.01 |
| GA02LC35 | MS5 | 245 | 90 | 45 | 41 | 44.399 | 10000 | 2500 | 4 | 0.012 |
| GA02LC36 | MS6 | 342.5 | 130 | 64 | 63 | 63.348 | 15000 | 1500 | 11.61 | 0.015 |
Additional information
| MS. No |
MT1 ,MT2 ,MT3 ,MT4 ,MT5 ,MT6 |
|---|
